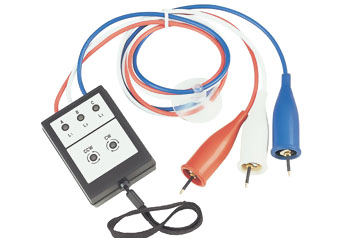

Digital Phase Indicator 8030
It can check the presence of open phase and also phase sequence by LED and buzzer at the same time. It is small, lightweight, and portable.
|
Specifications |
Model: 8030 |
|
Operational Voltage |
200 ~ 600V AC three phase |
|
Time limit for
continuous |
200V: within 60 minutes
480V: within 4 minutes |
|
Frequency Response |
20~400Hz |
|
Safety Standard |
IEC61010-1 CAT.III 300V Pollution Degree 2 |
|
Withstand Voltage |
2200V AC for 1 minute |
|
Dimensions |
82(L) 〜 59(W) 〜 23(D)mm |
|
Weight |
200g approx. |
|
Cord |
1m(R: red S: white T: blue) |
|
Accessories |
Carrying Case
Pins for Test leads
Instruction Manual | |
