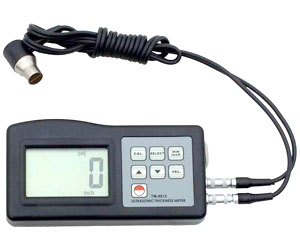

¡¡¡¡Ultrasonic Thickness Meter TM-8812

¡¡¡¡Application:
¡¡¡¡Used for measuring thickness and corrosion of pressure vessels, chemical equipment,
¡¡¡¡boilers, oil storage tanks etc., in industries of petroleum, shipbuilding and machine
¡¡¡¡manufacturing.

¡¡¡¡Specifications:
¡¡¡¡Measuring range: 1.2-225mm, 0.05-9inch
¡¡¡¡Operating principle: ULTRASONIC
¡¡¡¡Materials measured: any hard materials, including steel, cast iron, aluminum, red
¡¡¡¡copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
¡¡¡¡and other materials
¡¡¡¡Sound velocity: 500-9000m/s
¡¡¡¡Lower limit steel pipes: §æ15x2.0mm, §æ20x3.0mm determined by the transducer
¡¡¡¡Calibration block: included
¡¡¡¡Resolution: 0.1mm
¡¡¡¡Accuracy: ¡À(0.5%n+0.1)
¡¡¡¡RS232C interface: with RS232C
¡¡¡¡Power supply: 4x1.5V AAA (UM-4)battery
¡¡¡¡Battery indicator: low battery indicator
¡¡¡¡Operating conditions: 0-+45¡æ(32¨H-104¨H), ¡Ü90%RH
¡¡¡¡Dimensions: 120x62x30mm
¡¡¡¡Weight: 164g (not including battery)
