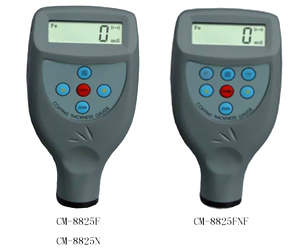

¡¡¡¡Coating Thickness Meter CM-8825FN/CM-8825F/CM-8825N

¡¡¡¡Operating principle:
¡¡¡¡CM-8825F: F type(magnetic induction), measure the thickness of non-magnetic coating
¡¡¡¡layers such as (aluminum,chrome,copper,ename1,rubber,paint) on magnetic substrate
¡¡¡¡(steel, iron, alloy and magnetic steel)
¡¡¡¡CM-8825N: NF type (eddy current), measure the thickness of non-conductive coating
¡¡¡¡layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-
¡¡¡¡ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
¡¡¡¡CM-8825FN: F type & NF type

¡¡¡¡Specifications:
¡¡¡¡In built probes
¡¡¡¡Measuring range:0-1250um/0-50mil
¡¡¡¡Resolution: 0.1/1
¡¡¡¡Accuracy: ¡À1-3%n or ¡À2.5um
¡¡¡¡Min. measuring area: 6mm
¡¡¡¡Min. sample thickness: 0.3mm
¡¡¡¡Battery indicator: low battery indicator
¡¡¡¡Metric/ imperial: convertible
¡¡¡¡Power supply: 4x1.5V AAA(UM-4)battery
¡¡¡¡Auto power off
¡¡¡¡Operating conditions: 0-+45¡æ(32¨H-104¨H), ¡Ü90%RH
¡¡¡¡Dimensions: 126x65x27mm
¡¡¡¡Weight: 81g(not including battery)
¡¡¡¡Optional accessories: other range 0-200um to 15000um
